ESCALATOR

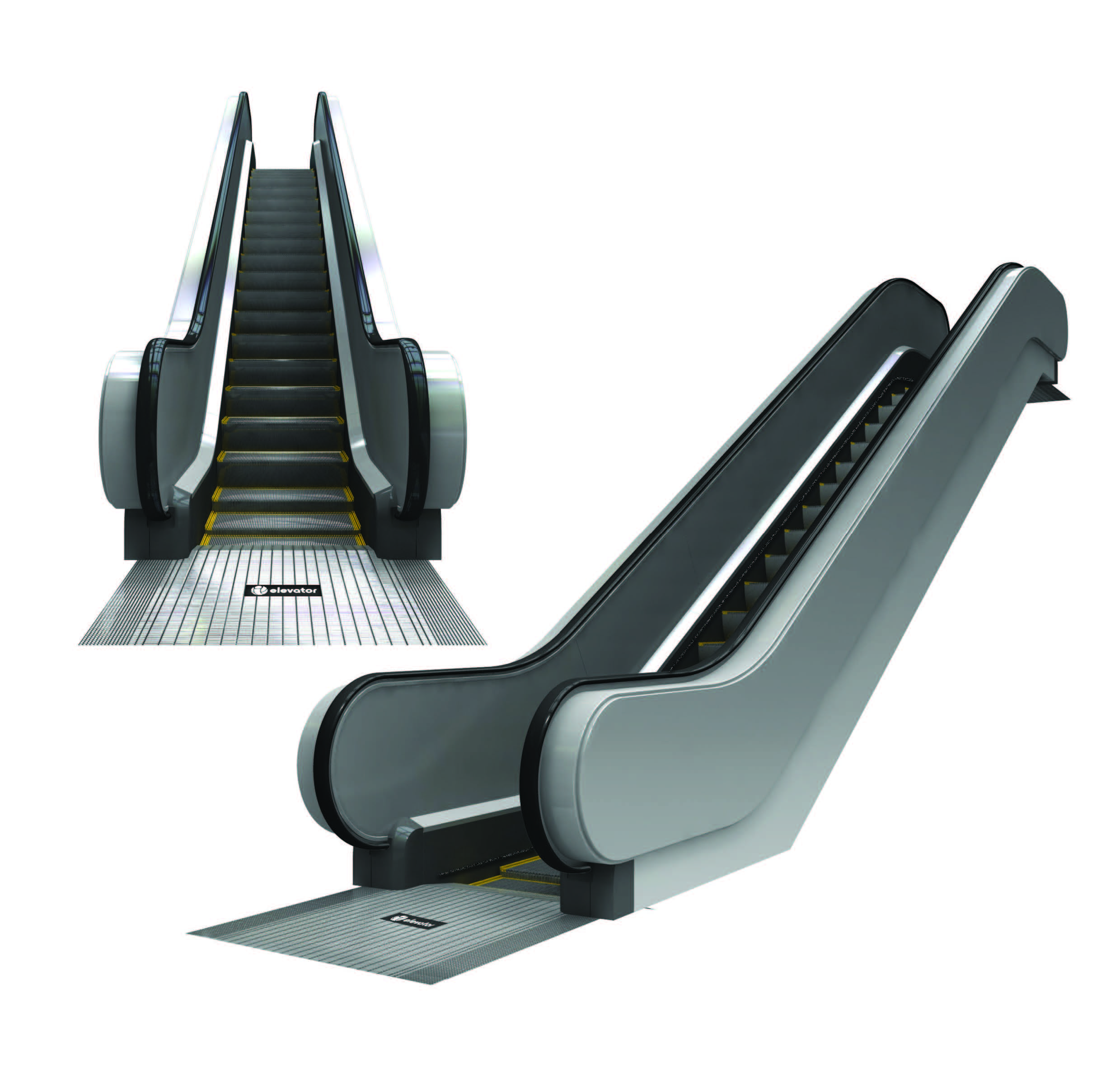

171110_아이엘리베이터 카다로그 44P_최종안_고용량_페이지_12_이미지_0013

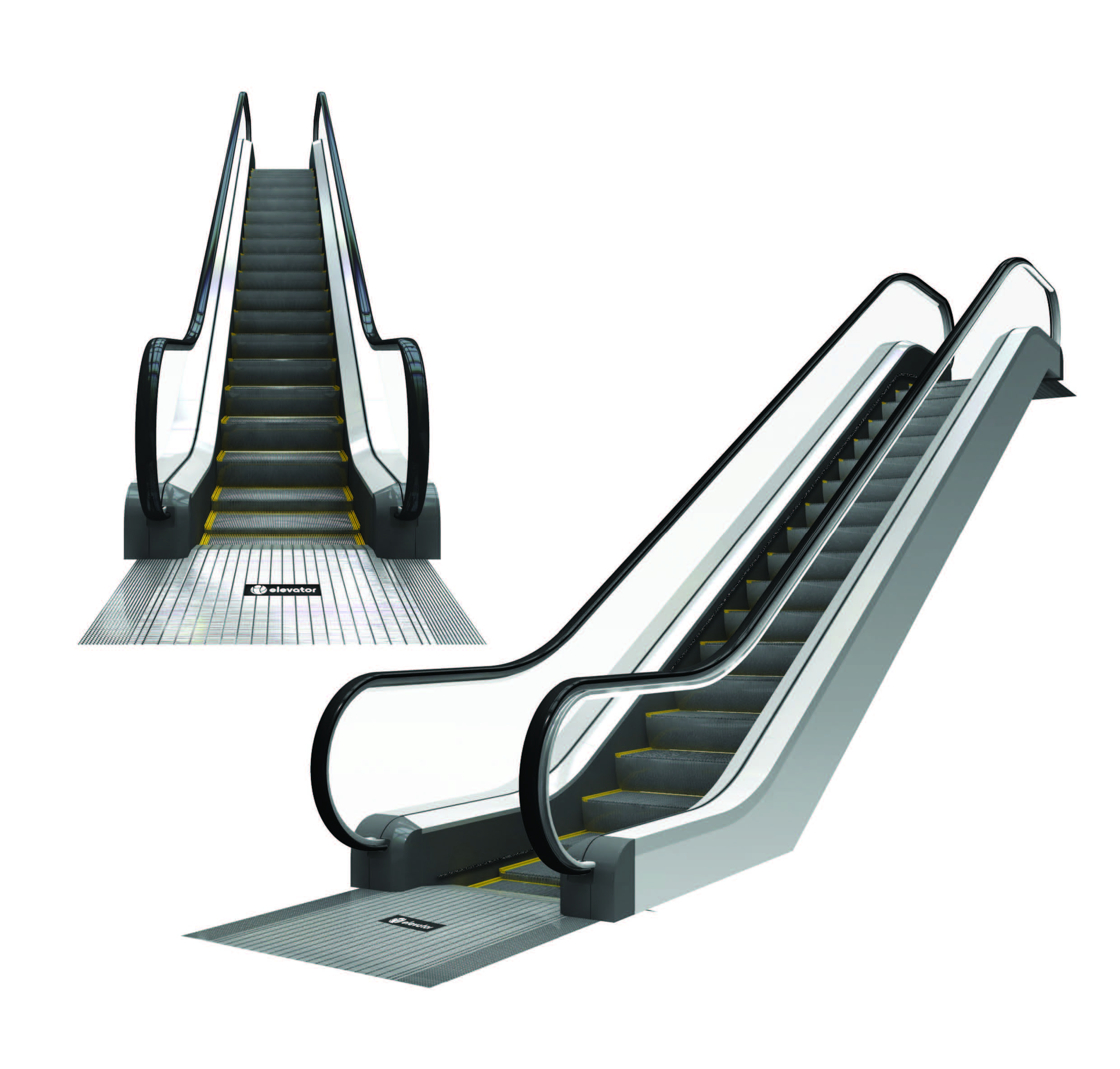

171110_아이엘리베이터 카다로그 44P_최종안_고용량_페이지_12_이미지_0014

Main Specification

Model
GSW-600 / GSW-800 / GSW-1000
Installation Place
Indoor / Outdoor
Step Width(mm)
600 / 800 / 1000
Capacity(man/hr)
4500 / 6750 / 9000
Vertical Height
1.0m – 7.5m
Inclination Degree
30º, 35º
Speed(m/min)
30 m/min (0.5m/Sec)
Power supply
380V, 50 Hz
Light source
220V, 50 Hz

Appearance Desigh

Type
TG / TGL / TGB
Installation Place
Tempered Glass 10mm / Stainless hairline Steel
Deck(Inner, Outer)
Stainless hairline Steel
Skirt Panel
Stainless hairline Steel

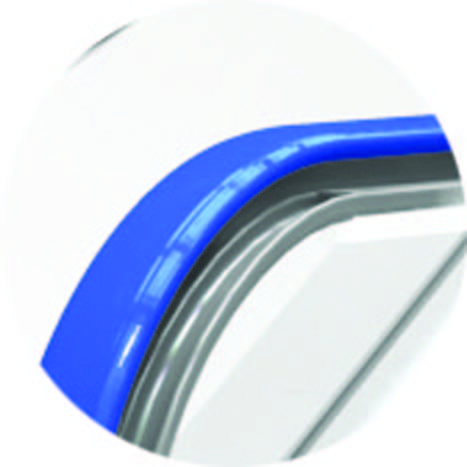

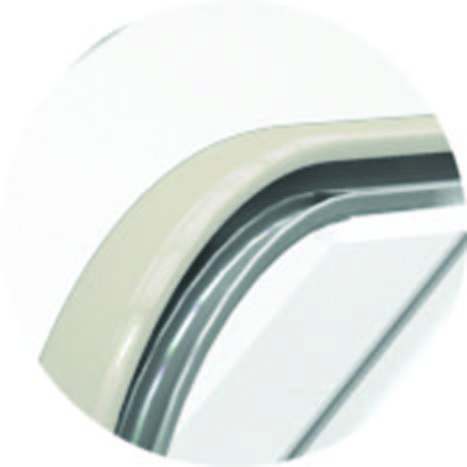

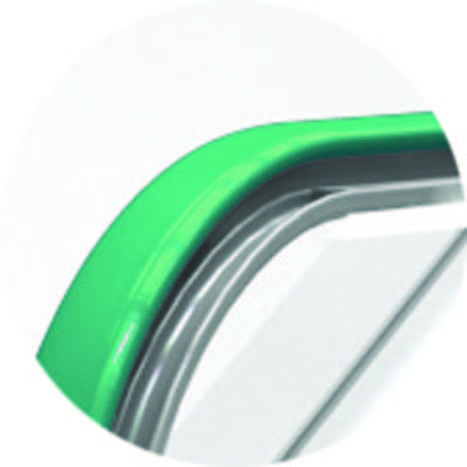

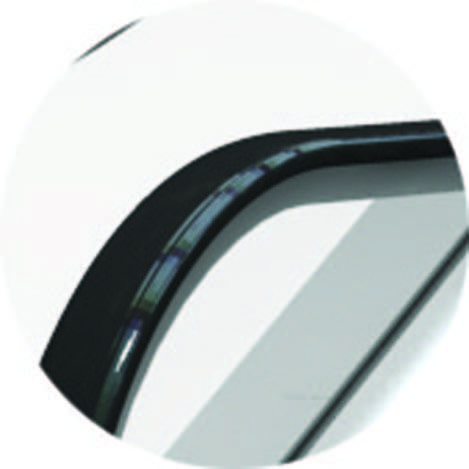

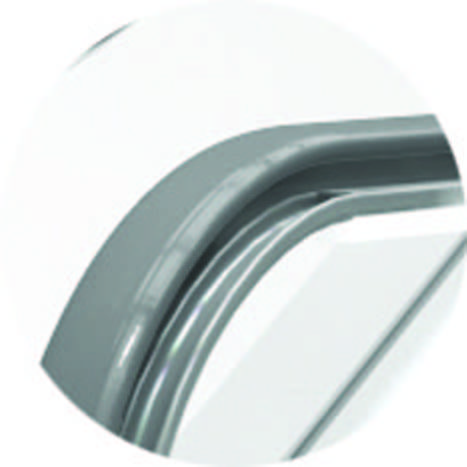

Handrail
Black Color(Standard), other Color for Option
Handrail Light
N/A / Fluorescent lamp / N/A
Step
Stainless Steel-Black(standard), Aluminium Die-casting Pressing
Landing Plate
Stainless Steel board(standard), Etched stainless(option)
Comb
Syntheic resin(yellow)
Exterior Panel
by other(Local supply)
Control Panel
Red emergency stop button & Key switch
